How to Read a Tape Measure Like a Pro
Learning how to read a tape measure can feel confusing at first glance. All those tiny lines jammed together look like a puzzle, especially on a standard Imperial (US) measuring tape. But once you understand the basic system, you'll be able to measure anything instantly and accurately.
Understanding the Lines on a Tape Measure
The trick to reading a tape measure is understanding that the lines are just fractions. The longest lines represent whole inches, and the shortest lines represent the smallest fractions. Here's how to break it down:
- The Inch Marks (The longest lines): Usually marked with bold numbers (1, 2, 3, etc.). These denote full inches.
- The Half-Inch Mark (1⁄2"): The second-longest line right in the middle of two inch marks.
- The Quarter-Inch Marks (1⁄4", 3⁄4"): The third-longest lines. There are four quarters in every inch.
- The Eighth-Inch Marks (1⁄8", 3⁄8", 5⁄8", 7⁄8"): The medium-short lines. There are eight of these in every inch.
- The Sixteenth-Inch Marks (1⁄16", etc.): The shortest lines on most standard tapes. There are 16 of these tiny marks in one inch.
Why Are Tape Measures Yellow?
Tape measures have been manufactured with bright yellow blades for decades. This high-contrast color scheme (black lines on a bright yellow background) is an industry standard because it maximizes legibility in low-light environments, such as dusty construction sites, dimly lit basements, or outdoor areas at dusk.

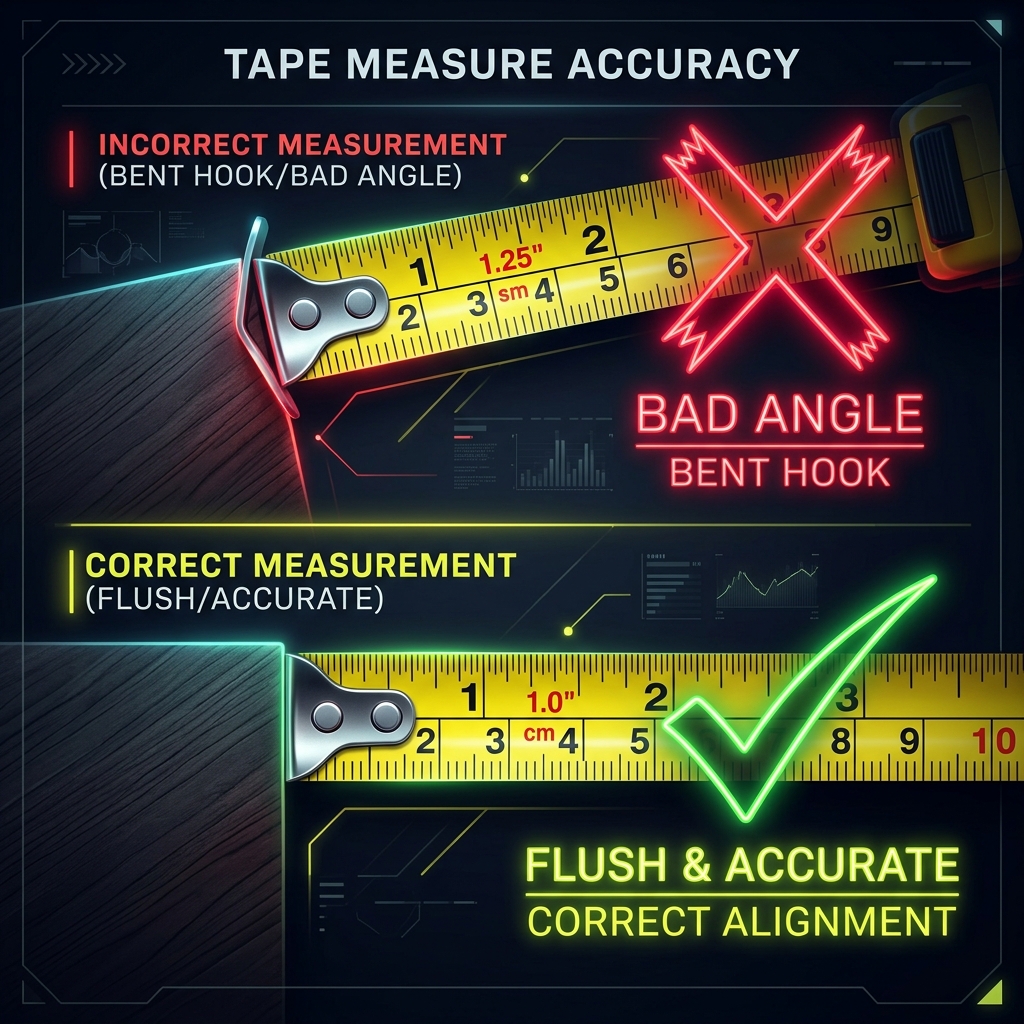

What is the Metal Hook at the End?
The metal piece at the zero mark is called the "tang" or "hook". You might notice that it feels loose and wiggles back and forth. This is not a defect! It's supposed to slide exactly the thickness of the metal hook itself. If you push the tape against a wall (an inside measurement), the hook slides in. If you hook it onto a board and pull (an outside measurement), it slides out. This guarantees your measurement is dead accurate from "true zero" no matter how you hold the tape.
How to Use Our Visualizer Tool
If you're ever stuck on a dimension like "3 and 5/8ths", simply type it into the search bar at the top of this tool. The TapeVisualizer will immediately jump to that precise mark on the ruler and show you exactly what it looks like in reality, ensuring you make the correct cut every single time.
Frequently Asked Questions About Reading a Tape Measure
What is 1/8 of an inch on a tape measure?
1/8 of an inch (one eighth) is the 4th smallest tick mark on a standard tape measure. It sits exactly halfway between the 0 and 1/4-inch marks. On most tapes, it is the 2nd line past the inch number. It equals 0.125 inches in decimal. You can visualize it instantly — just type "1/8" into the search bar above and watch the tape snap right to it!
What does 1/8th look like on a ruler?
On a standard ruler or tape measure, the 1/8th-inch mark is a medium-length tick. It is longer than the very short 1/16th marks but noticeably shorter than the 1/4-inch and 1/2-inch marks. There are exactly 8 of these marks between every pair of inch numbers.
Is 1/8th the same as 1/4?
No. 1/8 (one eighth) is exactly half the size of 1/4 (one quarter). In decimals: 1/8 = 0.125" and 1/4 = 0.25". It takes two 1/8th marks to equal one 1/4 mark on a tape measure. Think of it like pizza: 1/4 is a big slice, and 1/8 is half of that big slice.
How to measure one eighth of an inch?
To measure one eighth of an inch: find the nearest whole inch mark on your tape. Then count 2 short tick marks past it. Each of those small ticks is 1/16th, so 2 of them equals 2/16 = 1/8 of an inch. Alternatively, find the 1/4-inch mark and go exactly halfway back toward the inch number — that halfway point is 1/8".
How do you read fractions on a tape measure?
Reading tape measure fractions is all about line height. Here is the cheat sheet:
- Tallest numbered lines = Full inches (1", 2", 3"...)
- 2nd tallest line = 1/2 inch (0.5")
- 3rd tallest lines = 1/4 inch and 3/4 inch
- 4th tallest lines = 1/8, 3/8, 5/8, 7/8 inch
- Shortest lines = 1/16th-inch increments (the tiny ones)
Count up from the last whole inch number to find your measurement. Or just use our tool above — type any measurement and it pinpoints it instantly!
